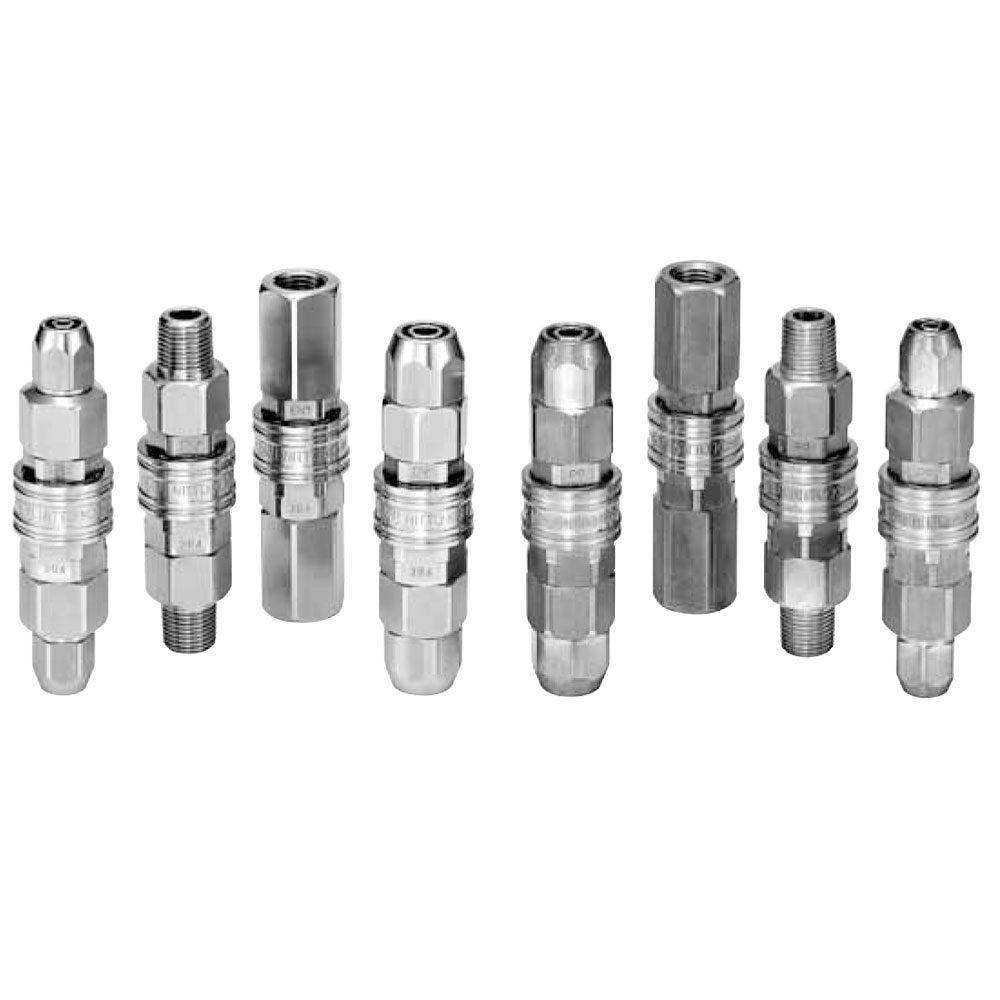

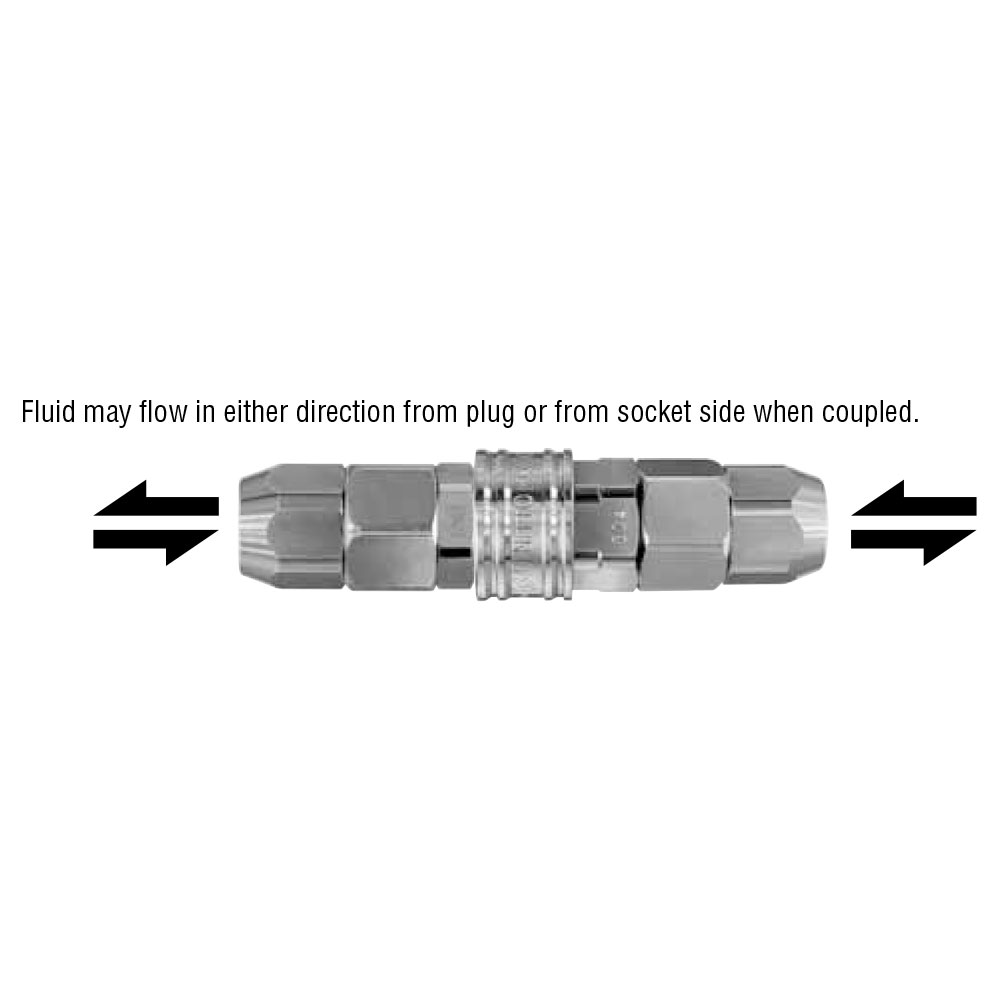

Small multipurpose type for low pressure lines

  • Both socket and plug have built-in automatic shut-off valves.
  • Compact size with max. outer dia. 17.5mm.
  • Compact yet operator friendly sleeve design.
  • For small bore piping from temperature control piping to scientific equipment.
  • Body materials in stainless steel or brass, excellent in corrosion resistance.
  • Four types of end configuration enable suitability with a wide range of piping applications.

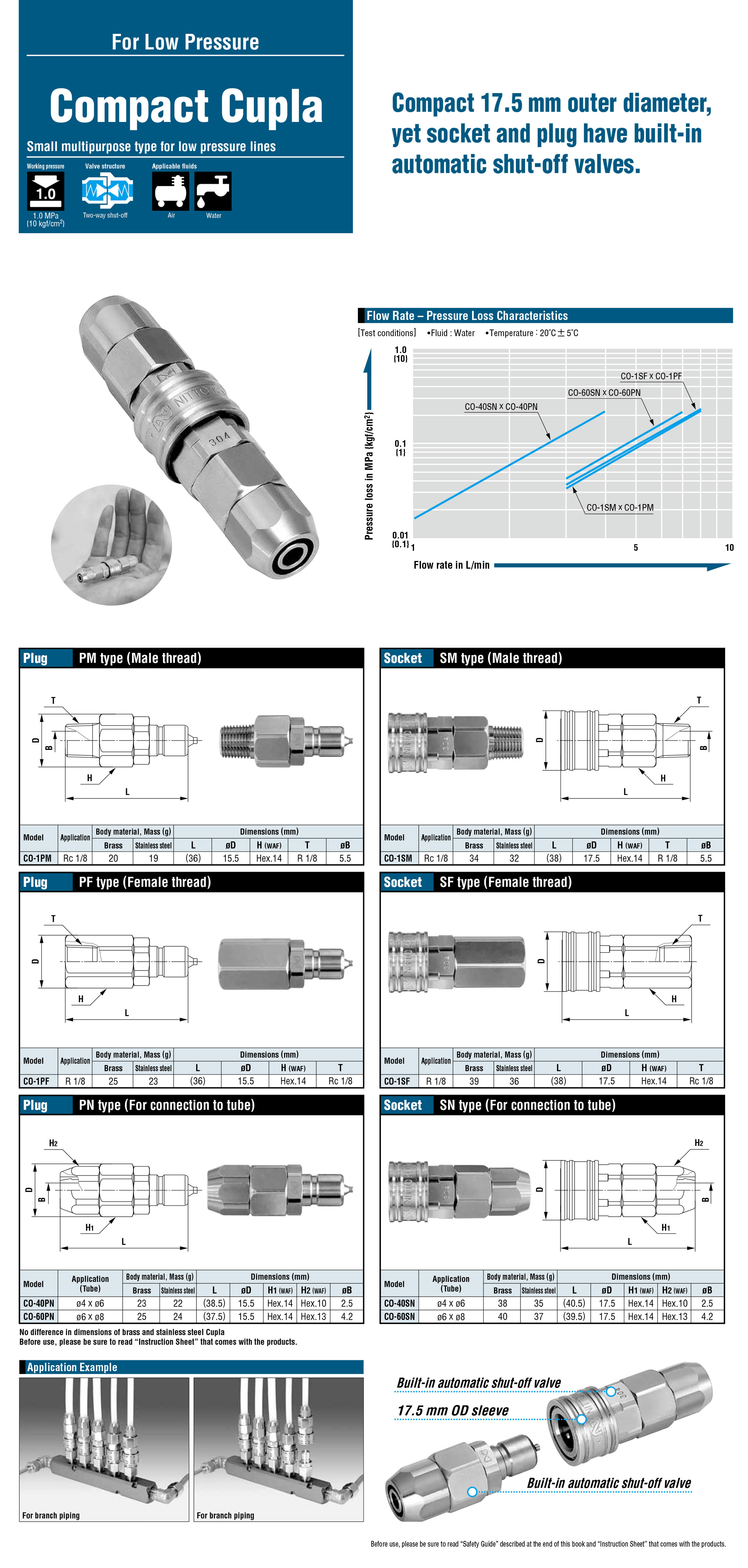

Description

Spesifikasi

PM Type (Male Thread)
Model
Application
Body Material, Mass (g)
Dimensions (mm)
Brass
Stainless Steel
L
D
H (waf)
T
B
CO-1PM
RC 1/8
20
19
(36)
15.5
Hex.14
R 1/8
5.5

SM Type (Male Thread)
Model
Application
Body Material, Mass (g)
Dimensions (mm)
Brass
Stainless Steel
L
D
H (waf)
T
B
CO-1SM
RC 1/8
34
32
(38)
17.5
Hex.14
R 1/8
5.5

PF Type (Female Thread)
Model
Application
Body Material, Mass (g)
Dimensions (mm)
Brass
Stainless Steel
L
D
H (waf)
T
CO-1PF
R 1/8
25
23
(36)
15.5
Hex. 14
RC 1/8

SF Type (Female Thread)
Model
Application
Body Material, Mass (g)
Dimensions (mm)
Brass
Stainless Steel
L
D
H (waf)
T
CO-1SF
R 1/8
39
36
(38)
17.5
Hex. 14
RC 1/8

PN Type (For Connection to Tube)
Model
Application
Body Material, Mass (g)
Dimensions (mm)
Brass
Stainless Steel
L
D
H1 (waf)
H2 (waf)
B
CO-40PN
4 x 6
23
22
(38.5)
15.5
Hex. 14
Hex. 10
2.5
CO-60PN
6 x 8
25
24
(37.5)
15.5
Hex. 14
Hex. 13

4.2


SN Type (For Connection to Tube)
Model
Application
Body Material, Mass (g)
Dimensions (mm)
Brass
Stainless Steel
L
D
H1 (waf)
H2 (waf)
B
CO-40SN
4 x 6
38
35
(40.5)

17.5

Hex. 14
Hex. 10
2.5
CO-60SN
6 x 8
40
37
(39.5)
17.5
Hex. 14
Hex. 13

4.2
