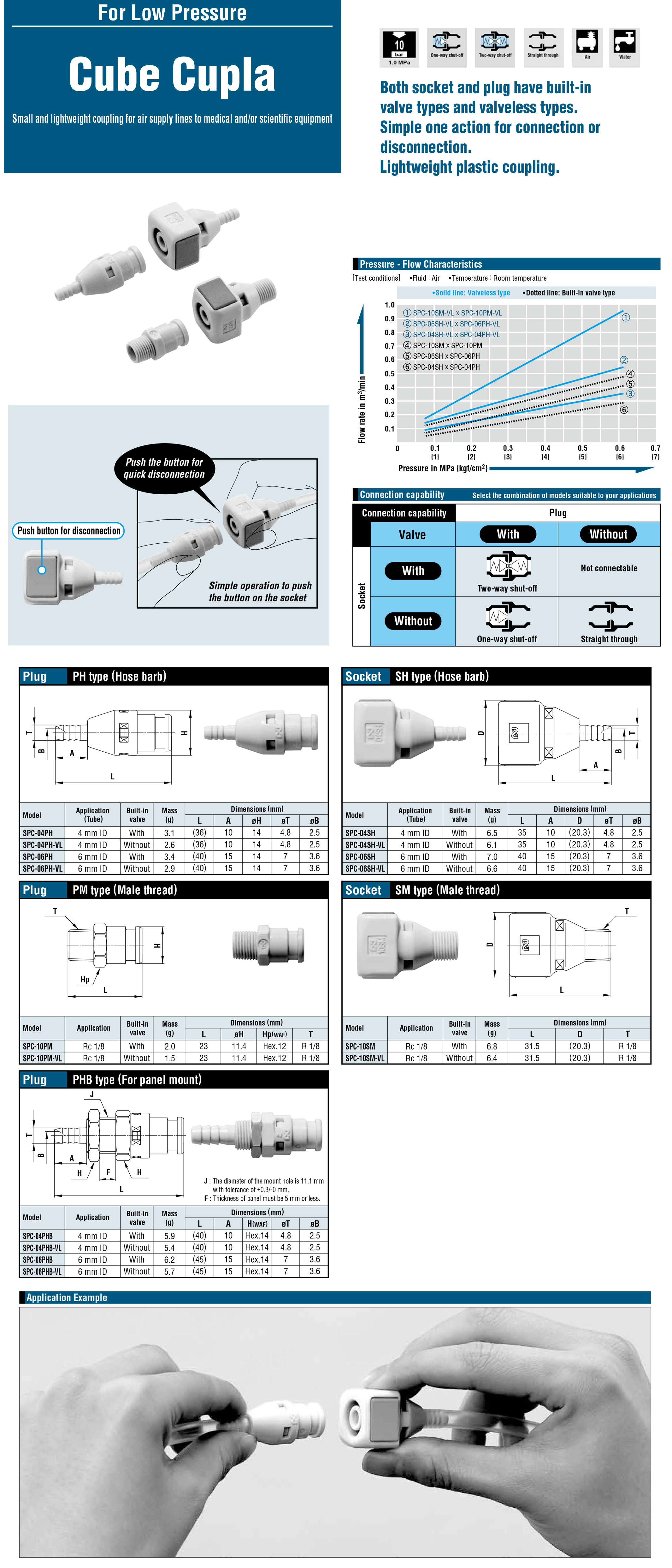

Small and lightweight coupling for air supply lines to medical and/or scientific equipment

  • Compact design for space saving.

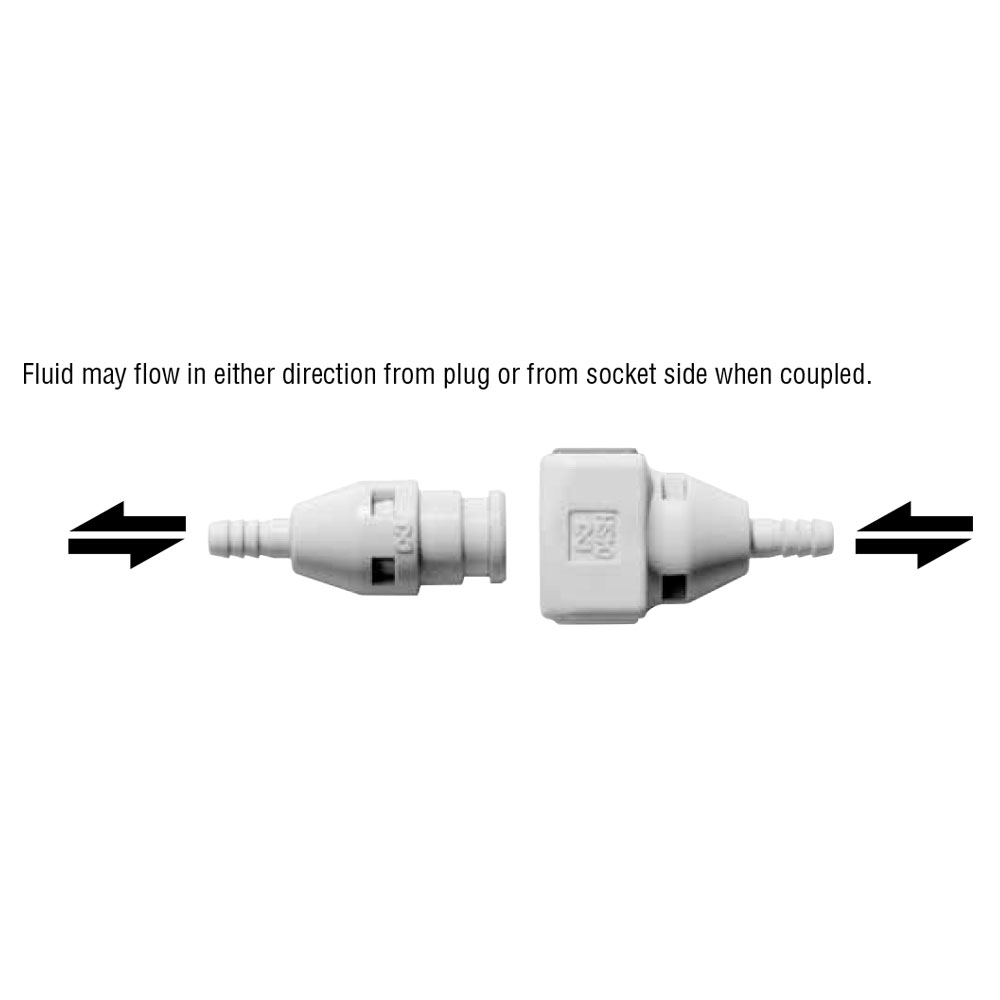

  • Just push plug into socket for connection. Simply push the button on the socket for disconnection.
  • Suitable for a wide range of applications from medical/scientific equipment to beverage machines or semiconductor manufacturing devices.

Description

Spesifikasi

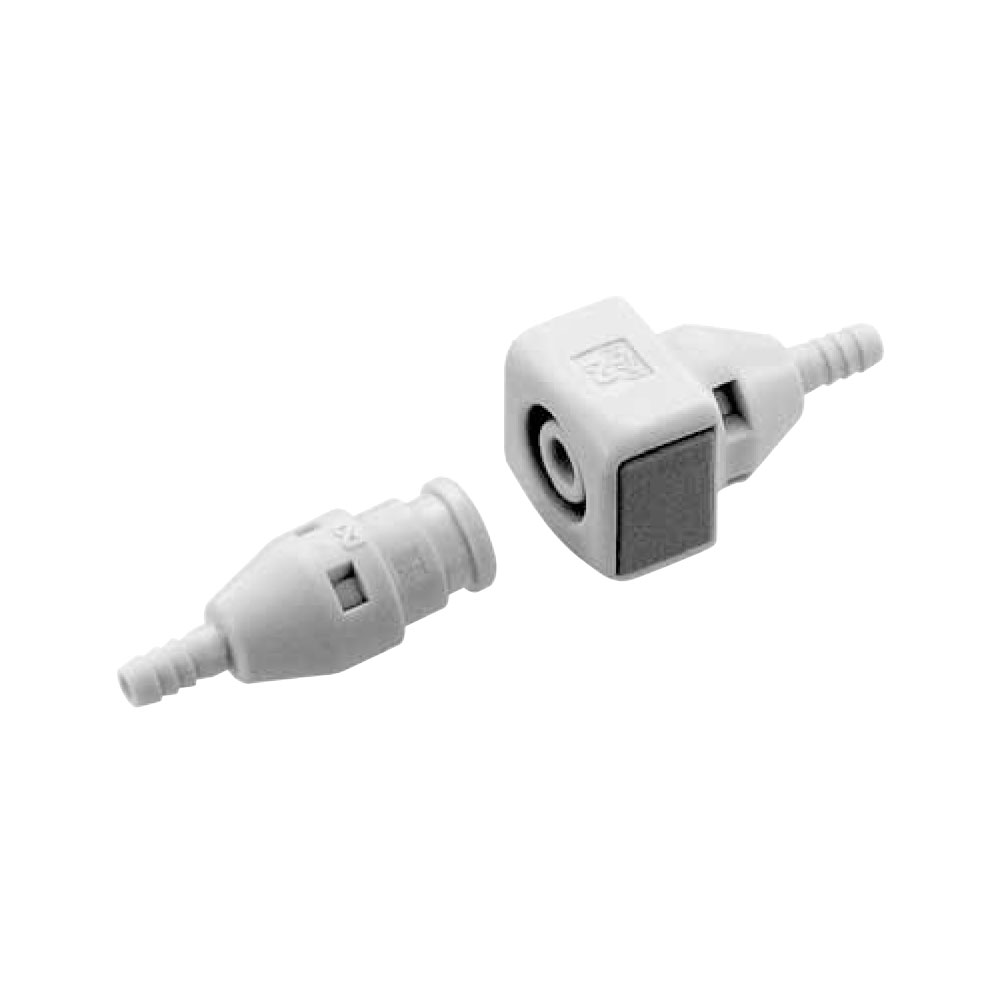

PH Type (Hose Barb)
Model
Application
Built-in Valve
Mass (g)
Dimensions (mm)
L
A
H
T
B
SPC-04PH
4mm ID
With
3.1
(36)
10
14
4.8
2.5
SPC-04PH-VL
4mm ID
Without
2.6
(36)
10
14
4.8
2.5
SPC-06PH
6mm ID
With
3.4
(40)
15
14
7
3.6
SPC-06PH-VL
6mm ID
Without
2.9
(40)
15
14
7
3.6

SH Type (Hose Barb)
Model
Application
Built-in Valve
Mass (g)
Dimensions (mm)
L
A
D
T
B
SPC-04SH
4mm ID
With
6.5
35
10
(20.3)
4.8
2.5
SPC-04SH-VL
4mm ID
Without
6.1
35
10
(20.3)
4.8
2.5
SPC-06SH
6mm ID
With
7.0
40
15
(20.3)
7
3.6
SPC-06SH-VL
6mm ID
Without
6.6
40
15
(20.3)
7
3.6

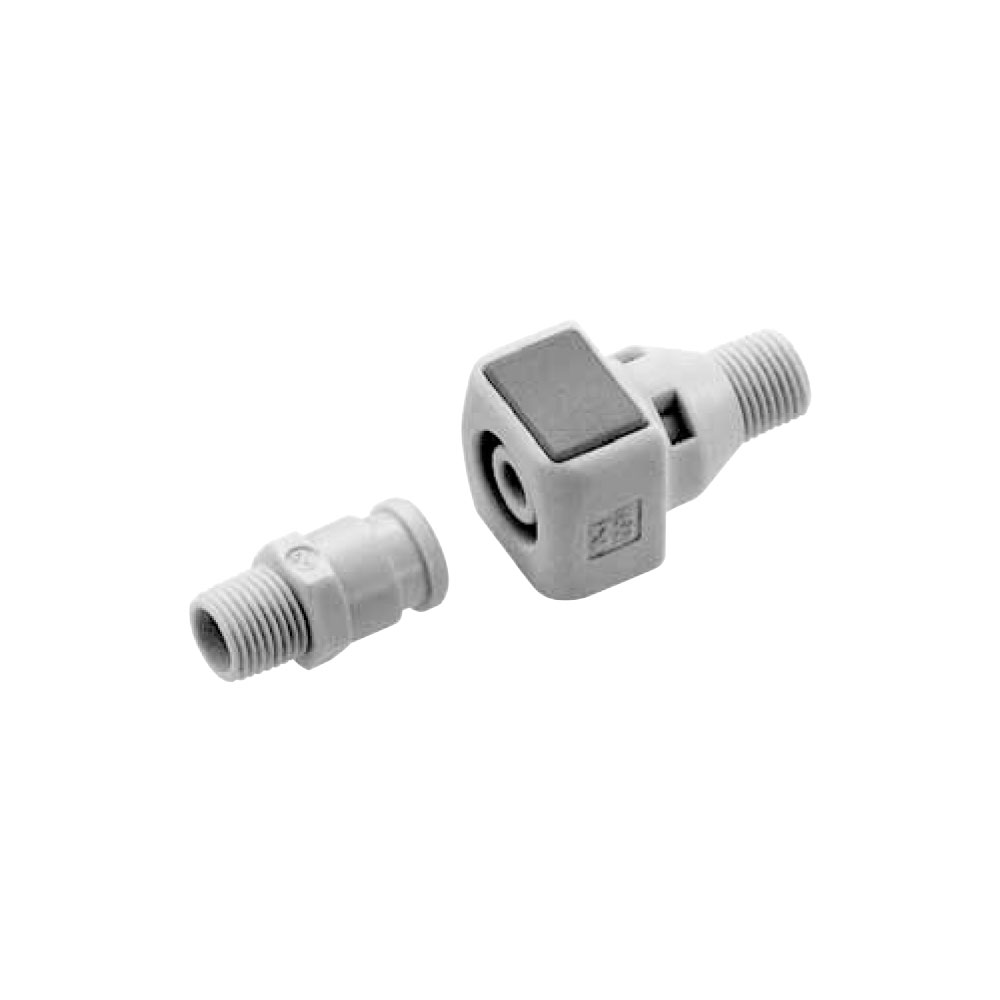

PM Type (Male Thread)
Model
Application
Built-in Valve
Mass (g)
Dimensions (mm)
L
H
HP (waf)
T
SPC-10PM
RC 1/8
With
2.0
23
11.4
Hex. 12
R 1/8
SPC-10PM-VL
RC 1/8
Without
1.5
23
11.4
Hex. 12
R 1/8

SM Type (Male Thread)
Model
Application
Built-in Valve
Mass (g)
Dimensions (mm)
L
D
T
SPC-10SM
RC 1/8
With
6.8
31.5
(20.3)
R 1/8
SPC-10SM-VL
RC 1/8
Without
6.4
31.5
(20.3)
R 1/8

PHB Type (For Panel Mount)

J : The diameter of the mount hole is 11.1mm with tolerance of +0.3/-0 mm
F : Thickness of panel must be 5m or less.
Model
Application
Built-in Valve
Mass (g)
Dimensions (mm)
L
A
H (waf)
T
B
SPC-04PHB
4mm ID
With
5.9
(40)
10
Hex. 14
4.8
2.5
SPC-04PHB-VL
4mm ID
Without
5.4
(40)
10
Hex. 14
4.8
2.5
SPC-06PHB
6mm ID
With
6.2
(45)
15
Hex. 14
7
3.6
SPC-06PHB-VL
6mm ID
Without
5.7
(45)
15
Hex. 14
7
3.6
