Simple design air line coupling on manifold

  • Just push in the plug to socket for simple and secure connection!
  • Multiple outlets are available from single air supply source.

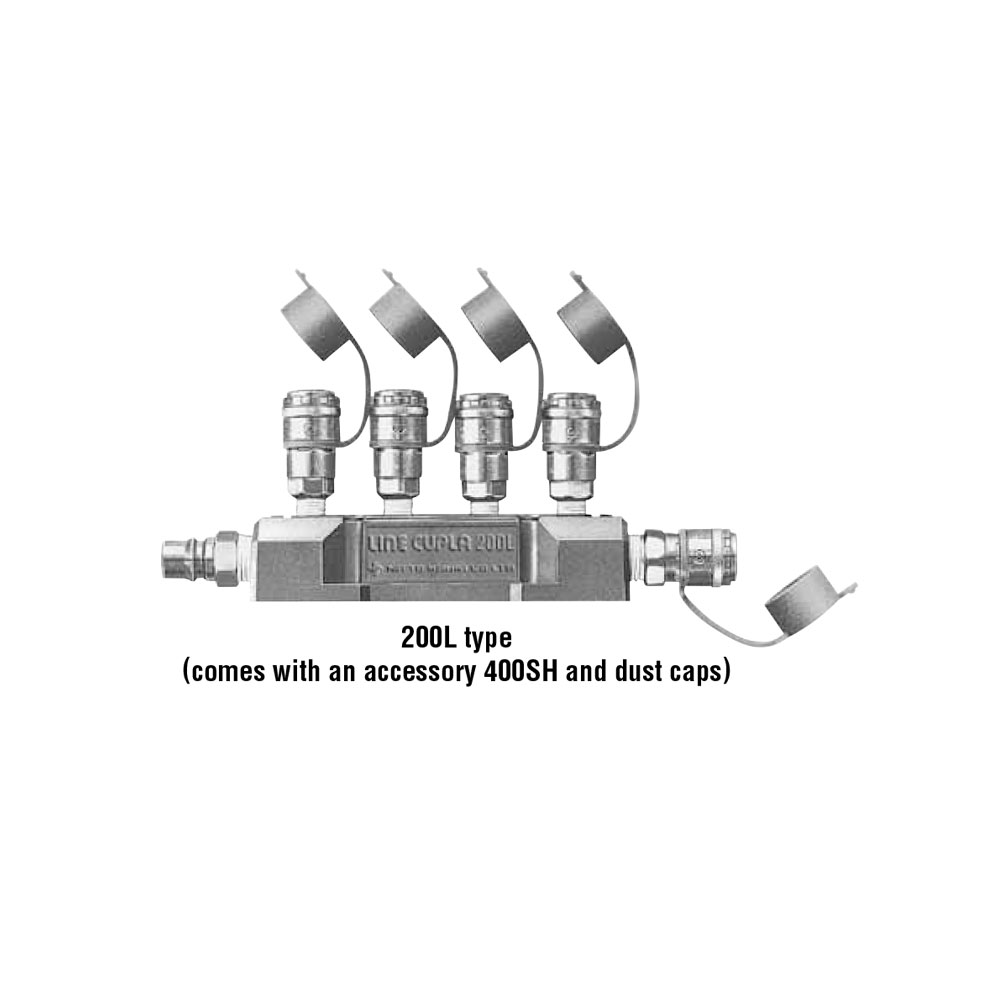

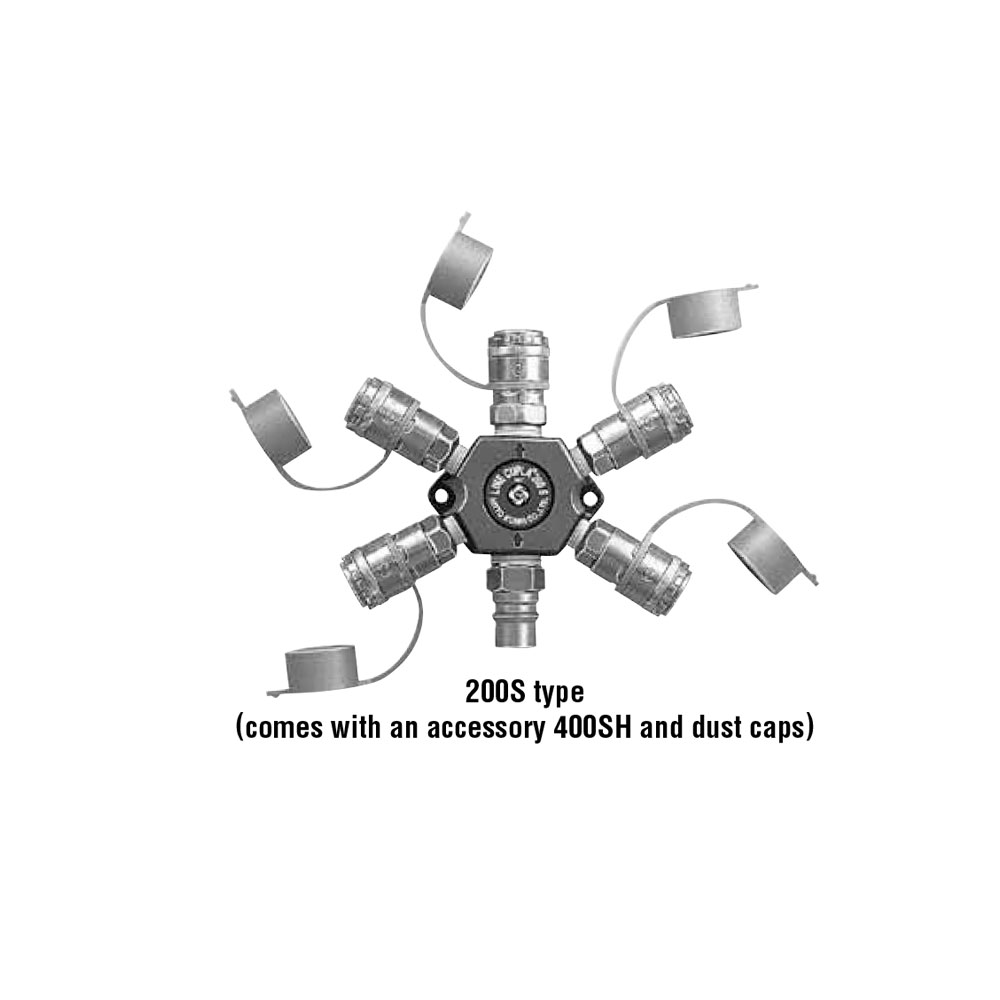

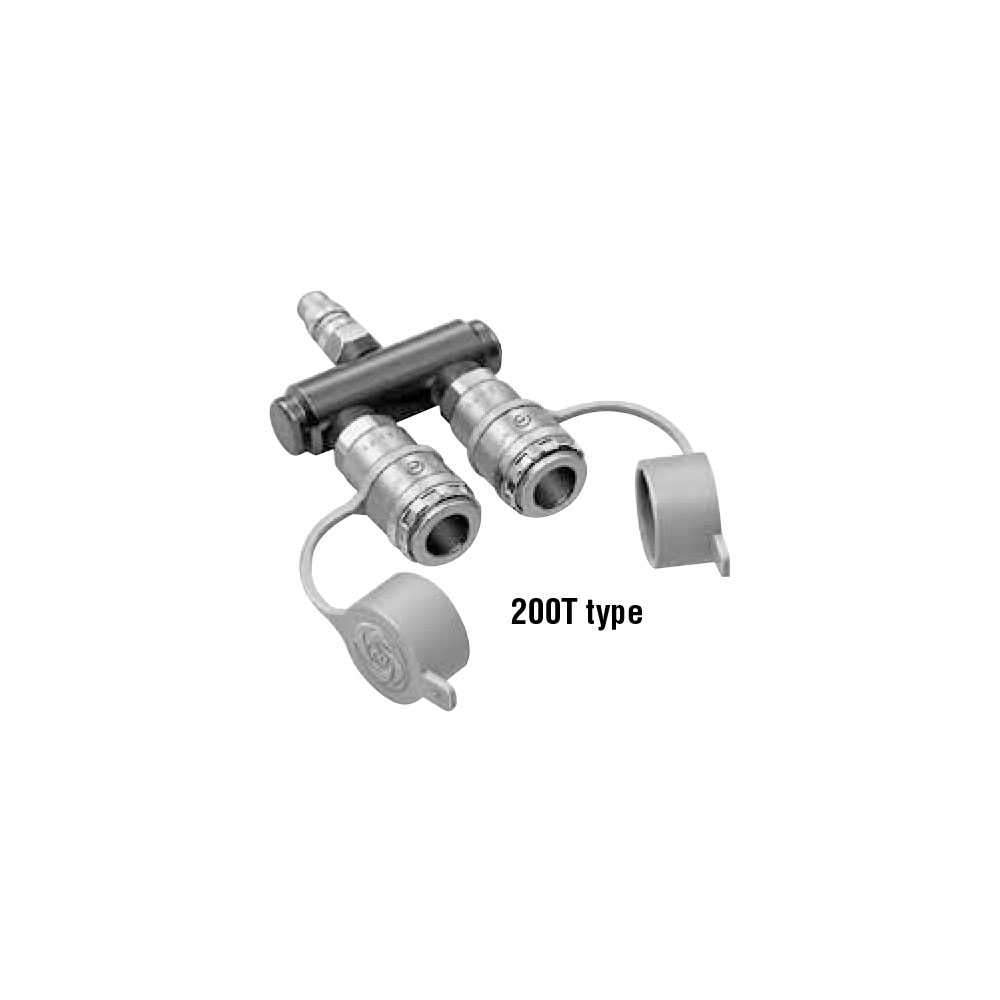

  • Choose from the 2-outlet type (Model 200T), the 5-outlet straight type (Model 200L) and the 5-outlet star type (Model 200S) to suit your application.

Description

Spesifikasi

Body Material
Body : Aluminum, Cupla : Steel (Chrome-plated)
Size
Inlet
200T Type : 20PM 200L Type / 200S Type : 400PM

Outlet
200T Type : 200-20SM 200L Type / 200S Type : 200-20SM, 40SM
Working Pressure MPa
1.5
kgf/cm2
15
bar
15
PSI
218
Seal material Working temperature range
Seal Material
Mark
Working Temperature Range
Remarks
Nitrile rubber
NBR (SG)
-20°C to +60°C
Standard material
