Quick Connect Couplings
- Push-to-connect design. Just push in and the tube mount is completed.
- Compact design for piping in narrow spaces.
- Plated brass and stainless steel bodies are available for excellent corrosion resistance.
- Available in various end configurations to satisfy a wide range of pneumatic applications.
Description

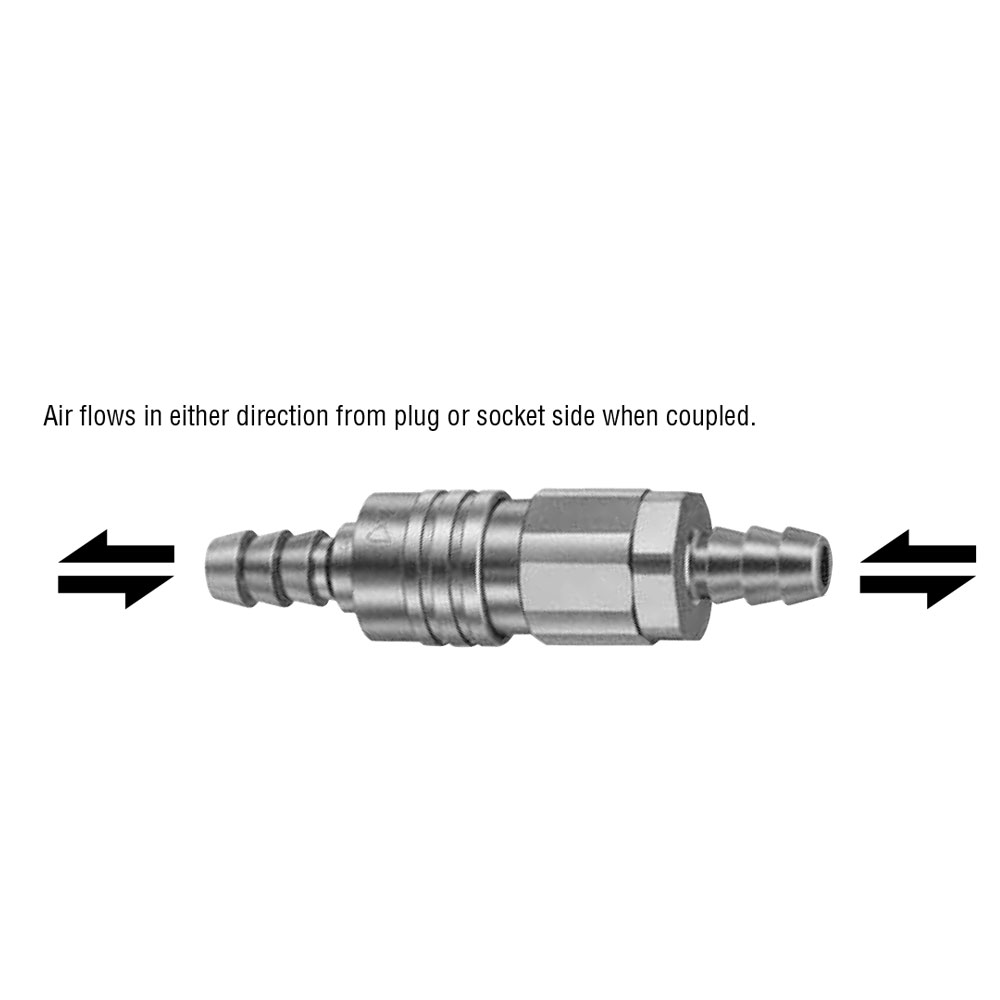

Micro Cupla For piping in pneumatic control devices |
Compact, lightweight Cuplas with only 9.5 mm outer diameter. Push-to-connect operation. Tube Fitter type for even easier tube insertion. |

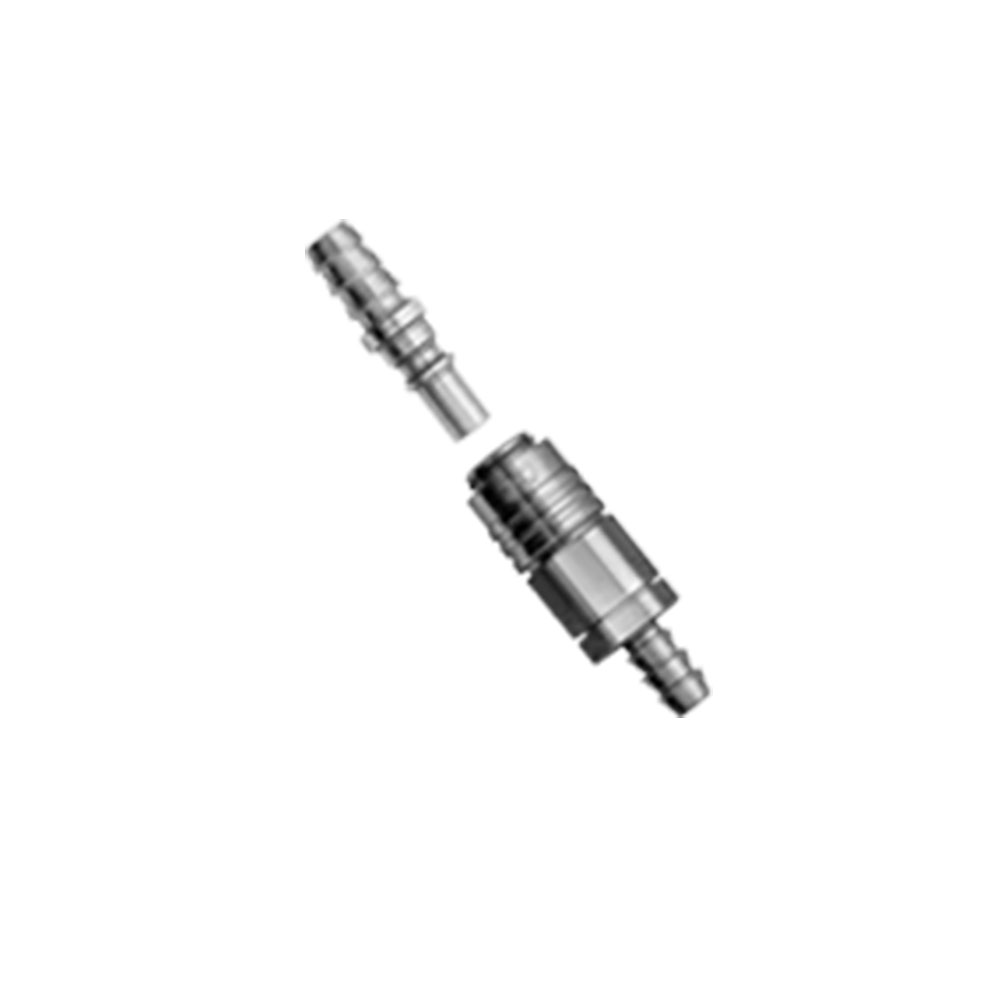

![]() A : 9.5 mm OD sleeve B : Push-to-connect design with automatic shut-off valve C : Wide variety of end configurations |
![]()
|
Micro Cupla Stainless Steel Models |
Highly Corrosion-resistant Stainless Steel Micro Cupla |
![]() Nitto Kohki Indonesia, Nitto Kohki |

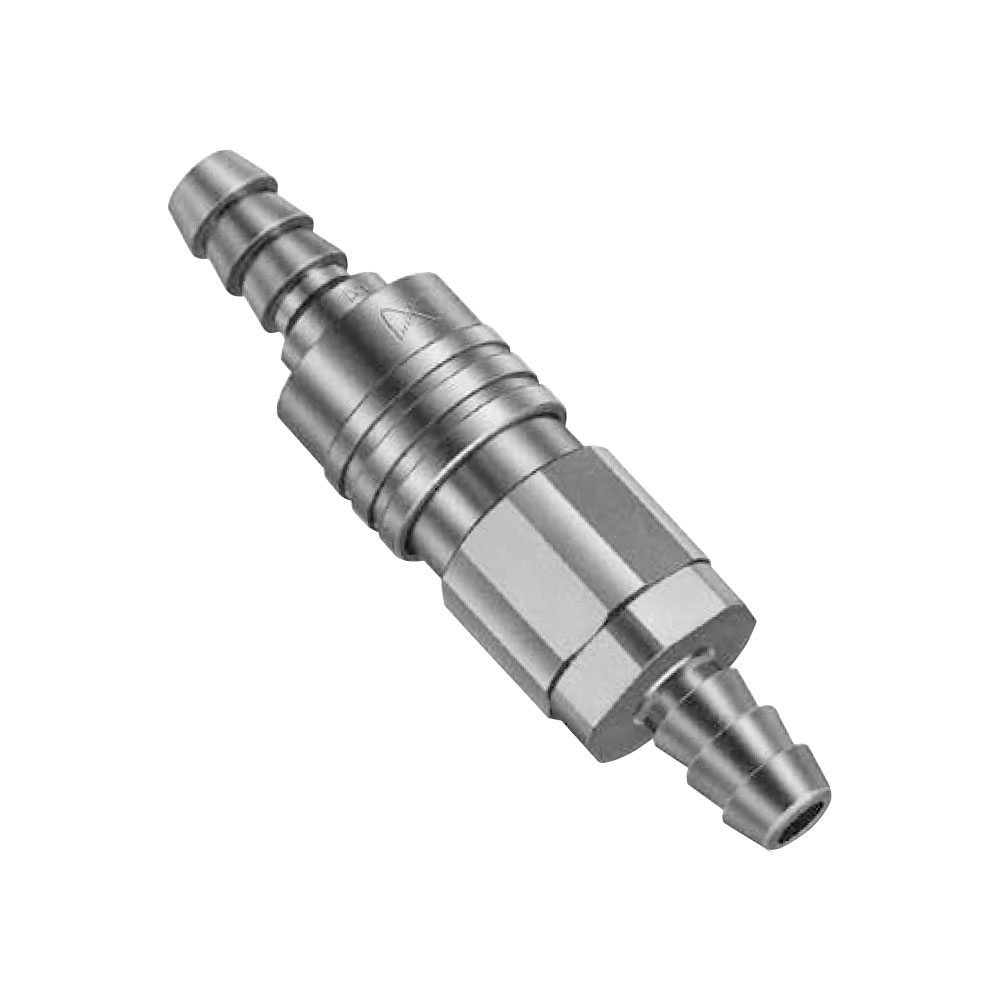

A : Built-in automatic shut-off valve B : 9.5 mm OD sleeve C : Push-to-connect design D : Wide variety of end configurations |
Spesifikasi
![]() |
||||||||
Model | Application (Tube) |
Body Material ? Mass (g) |
Dimension (mm) |
|||||
Brass |
L |
C |
A |
øH |
øT |
øB |
||
MC-03PH | 3mm ID |
1.2 |
19 |
9.2 |
8 |
5.5 |
3.5 |
1.2 |
MC-04PH | 4mm ID |
1.4 |
19 |
9.2 |
8 |
5.5 |
4.8 |
2.5 |
![]() |
|||||||
Model | Application (Tube) |
Body Material ? Mass (g) |
Dimension (mm) |
||||
Brass |
L |
øD |
A |
øT |
øB |
||
MC-03SH | 3mm ID |
7 |
(27.5) |
9.5 |
8 |
3.5 |
1.2 |
MC-04SH | 4mm ID |
7.3 |
(27.5) |
9.5 |
8 |
4.8 |
2.5 |
![]() |
||||||||
Model | Application (Tube) |
Body Material - Mass (g) |
Dimension (mm) |
|||||
Brass |
L |
C |
A |
H (WAF) |
T |
øB |
||
MC-05PM | M5 x 0.8 |
1.9 |
17 |
9.2 |
4.5 |
Hex.7 |
M5 x 0.8 |
2.5 |
![]() |
||||||||
Model | Application (Tube) |
Body Material - Mass (g) |
Dimension (mm) |
|||||
Brass |
L |
øD |
A |
H (WAF) |
T |
øB |
||
MC-05SM | M5 x 0.8 |
7.4 |
(24.5) |
9.5 |
4.5 |
Hex.9 |
M5 x 0.8 |
2.5 |
![]() |
|||||||
Model | Application (Tube) |
Body Material - Mass (g) |
Dimension (mm) |
||||
Brass |
L |
C |
H (WAF) |
T |
øB |
||
MC-10PM | RC 1/8 |
9 |
26 |
9.2 |
Hex.11 |
R 1/8 |
2.5 |
![]() |
|||||||
Model | Application (Tube) |
Body Material - Mass (g) |
Dimension (mm) |
||||
Brass |
L |
øD
|
H (WAF) |
T |
øB |
||
MC-10SM | RC 1/8 |
13.1 |
(30) |
9.5 |
Hex.11 |
R 1/8 |
3 |
![]() |
|||||||||
Model | Application (Tube) |
Body Material - Mass (g) |
Dimension (mm) |
||||||
Brass |
L |
C |
A |
B |
E |
øT |
øBp |
||
MC-04PHL | 4mm ID |
9.4 |
(23.3) |
9.2 |
8 |
(18.3) |
18 |
4.8 |
2.5 |
![]() |
|||||||||
Model | Application (Tube) |
Body Material - Mass (g) |
Dimension (mm) |
||||||
Brass |
L |
C |
A |
øD |
E |
øT |
øB |
||
MC-04SHL | 4mm ID |
14.8 |
(30.8) |
(25.8) |
8 |
9.8 |
18 |
4.8 |
2.5 |
![]() |
|||||||||||
Model | Application (Tube) |
Body Material - Mass (g) |
Dimension (mm) |
||||||||
Brass |
L |
A |
øD |
øT |
øB |
HS(WAF) |
øJ |
H(WAF) |
F |
||
MC-04SHB | 4mm ID |
11.5 |
(36) |
8 |
9.5 |
4.8 |
2.5 |
Hex.11 |
7.1 + 0.30 |
Hex.9 |
1.2 to 3.5 |
