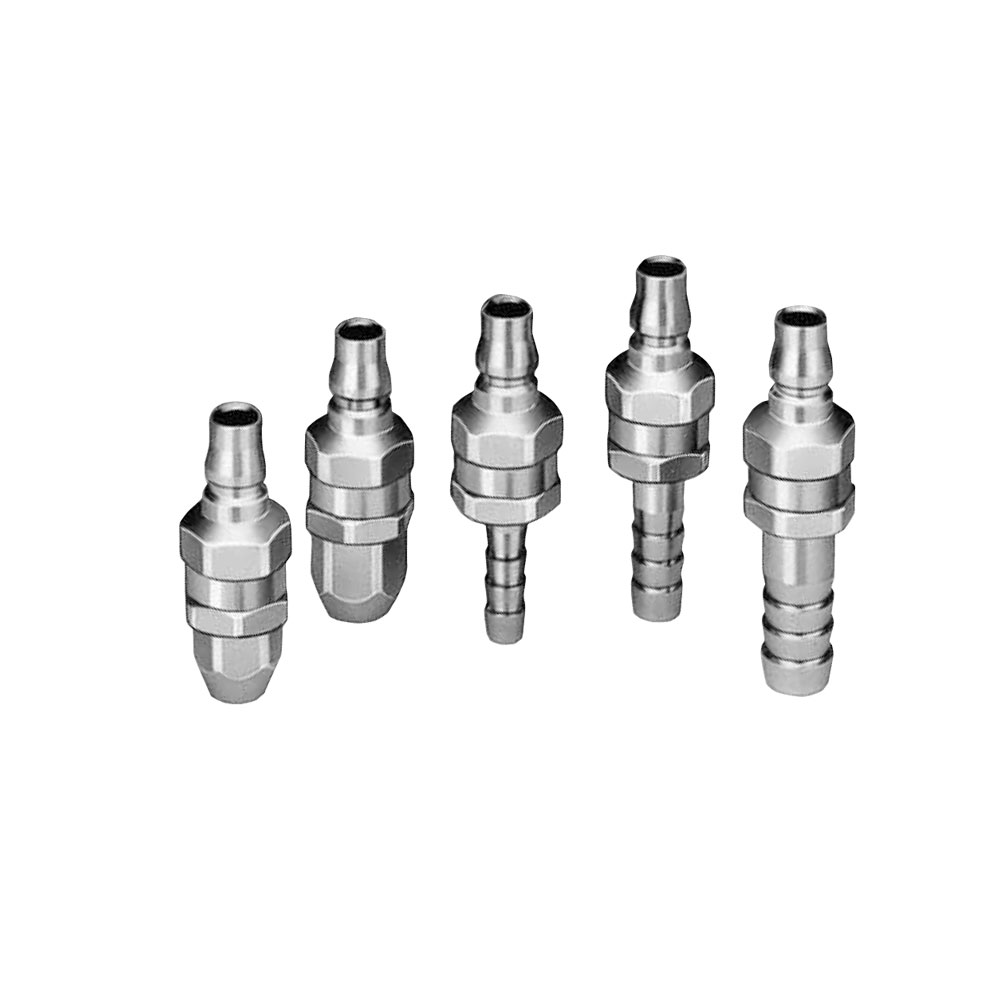

For air lines with purge mechanism

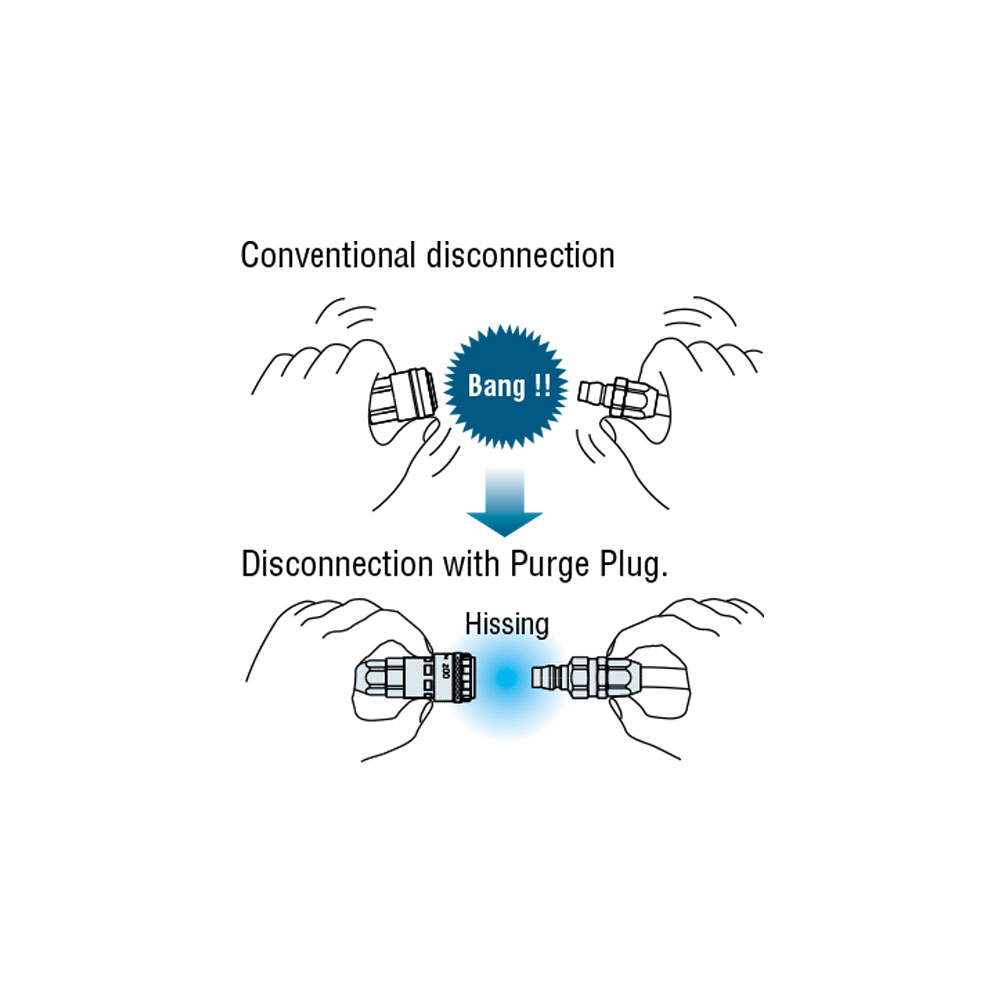

  • When the Cupla is disconnected, the pressure left in the plug side hose is released gradually without an unpleasant popping noise and a hose whip back motion.
  • Unique design of air purge system enables the residual pressure release quickly and quietly.
  • A unique but simple purge valve design is good for long and repeated use.
  • The function is assured even under a high supply pressure or with a long hose.

Description

Spesifikasi

Body Material
Steel (Chrome-plated)
Size
1/4", 3/8", 1/2" / ø6.5 x ø10, ø8.5 x ø12.5 hose
Working Pressure MPa
1.0
kgf/cm2
10
bar
10
PSI
145
Seal material Working temperature range
Seal Material
Mark
Working Temperature Range
Remarks
Nitrile rubber
NBR (SG)
-20°C to +60°C
Standard material
