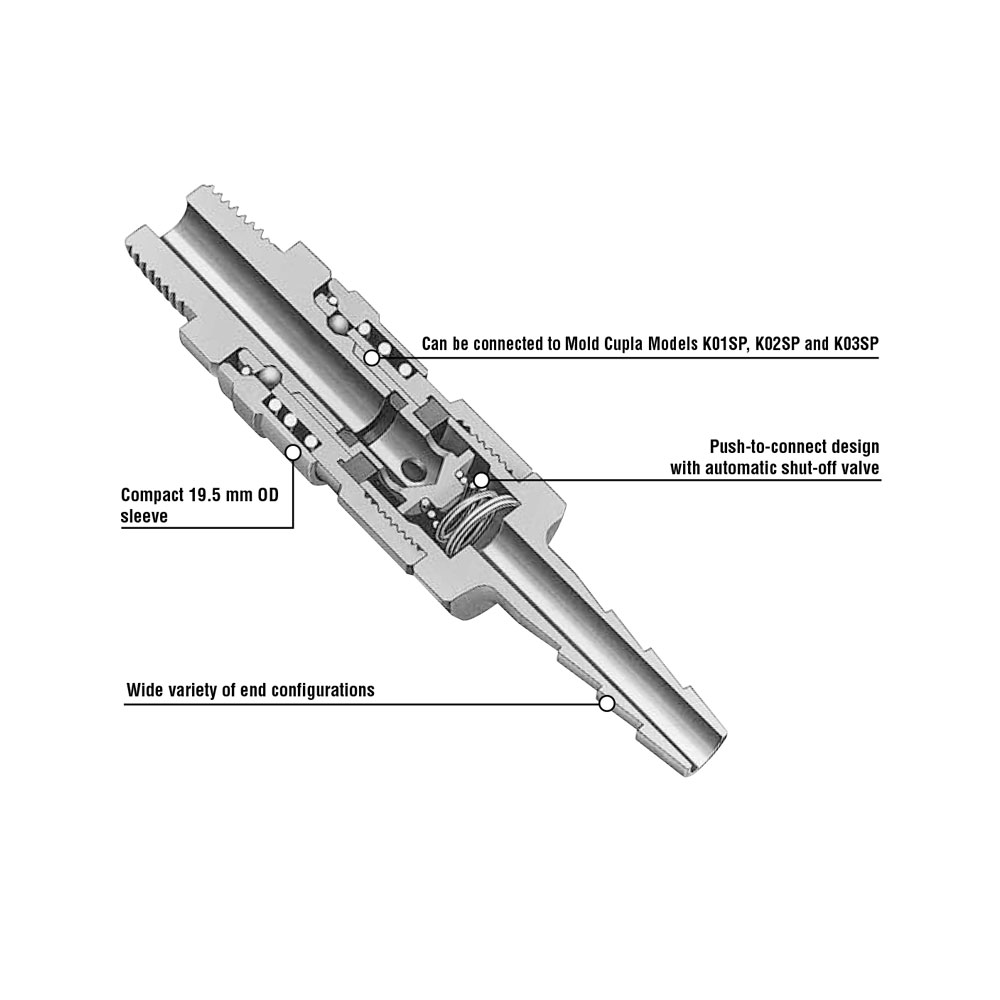

Light, compact for air piping connections

  • Lightweight design suits direct connection to power tools. Aluminum body is adopted for some models to reduce the weight.

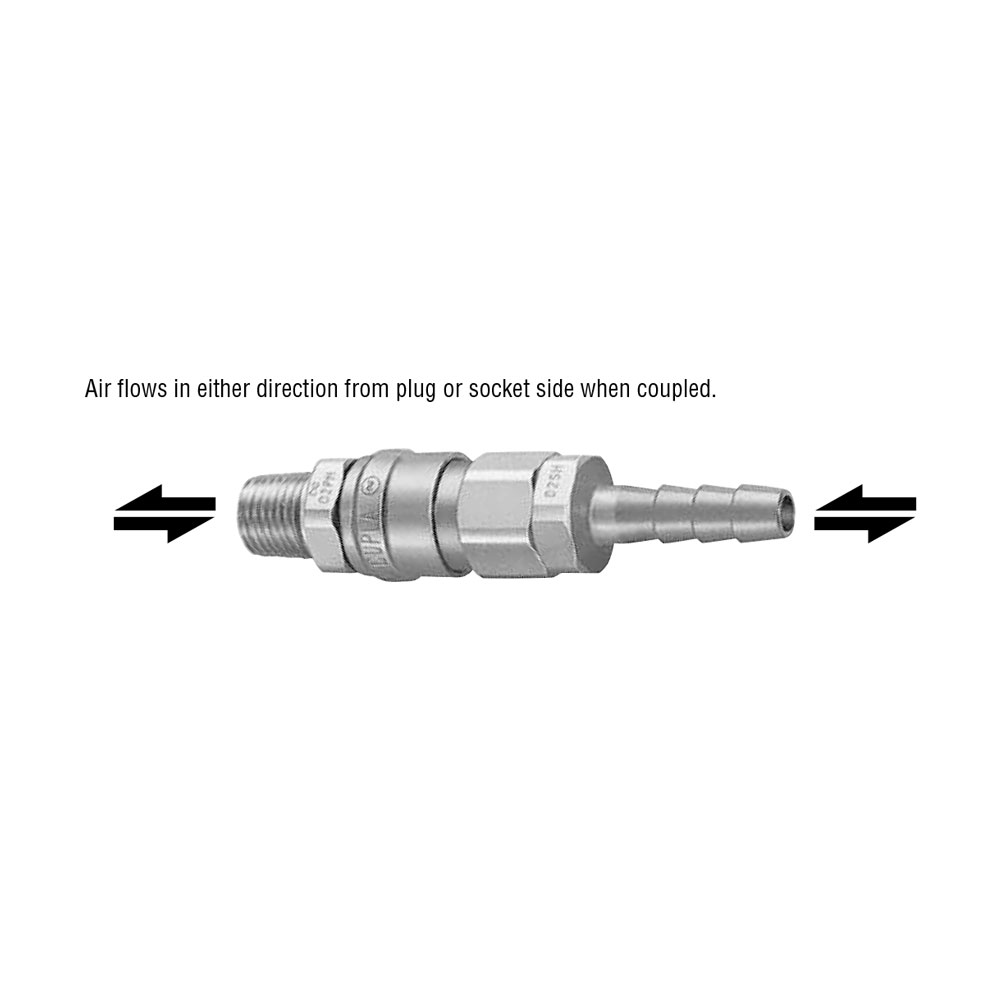

  • Just push the plug into socket for easy one hand connection.
  • Available in various end configurations for a wide range of pneumatic applications.
  • Model 02S20P can be connected with sockets for Hi Cupla Models 20, 30 and 40.
  • Also available with quick connect / disconnect Tube Fitter type.

Description

Spesifikasi

Body Material Cupla : Steel (Chrome-plated), Aluminum Tube Fitter Type: Brass (Nickel-plated)
  Thread 1/8", 1/4"
Size Hose Barb 1/4", Urethane hose : ø5 x ø8, ø6.5 x ø10
  Tube Barb Polyurethane tube: Outside Dia. ø6 ± 0.1, ø8 ± 0.15
Polyamide tube: Outside Dia. ø6 , ø8
Fluorine contained resin tube: Outside Dia. ø6 ± 0.07, ø8 ± 0.07
Working Pressure MPa 1.0
kgf/cm2 10
bar 10
PSI 145
Seal material Working temperature range Seal Material Mark Working Temperature Range Remarks
Nitrile rubber NBR (SG) -20°C to +80°C Standard material
