Ultra Compact, Integrated cylinder
- A new refrigerant supports a refrigerant (CFC, HCFC, HFC) conventionally.
- It is Freon discharge restraint law conformity product.
- In comparison with a general collection device +24L cylinder, approximately 60% of setting space reduces it.
Description

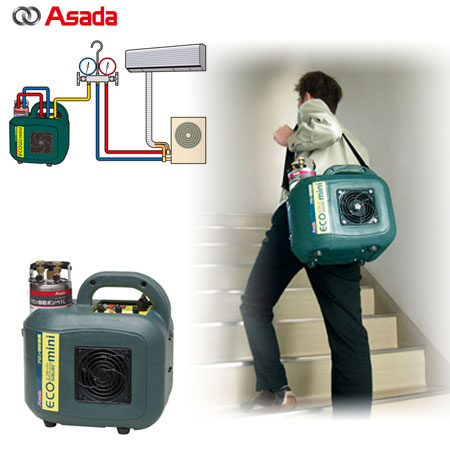

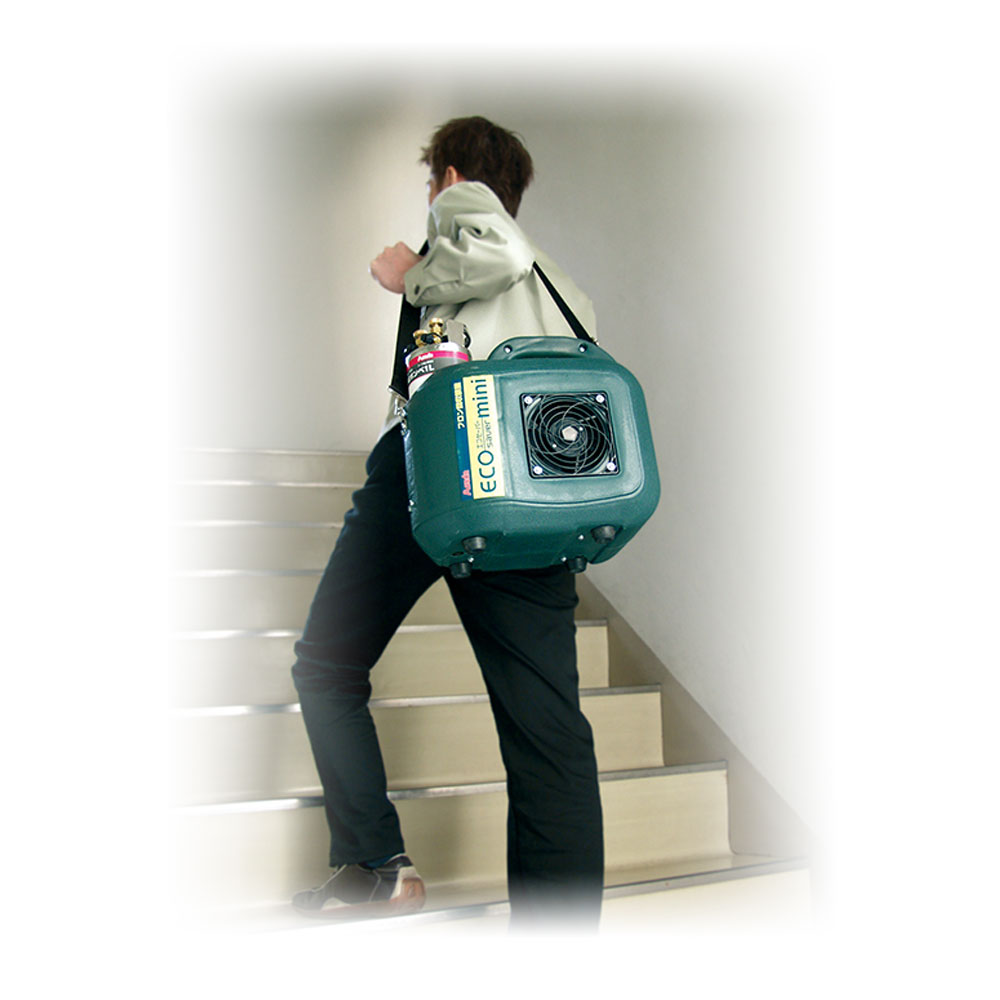

Eco Saver Mini Room air conditioners, car air conditioners, compact package air conditioners, vending machines, etc. For recovering CFC at repairing and disposing of small air conditioning equipment. 1L Cylinder Integral design that 1 L Cylinder can be built in recovery equipment. Compared with general recovery equipment +24 L bottle, installation space is reduced by about 60%. Super Lightweight, Compact Space-Saving Design. Ultra light weight 9.3kg. With shoulder straps, it is easy to go up and down the ladder/ stairs and move on site. Space-saving design that makes it easy to work even at high places and narrow places such as rooftops and verandas. |
![]() |
Spesifikasi
Product | Eco Saver Mini |
Corresponding Refrigerant | R414A, R422A, R422D, R423A, R507A, R509A (R501A, R502A, R503A, R507A) |
Collection Method | Gas compression recovery method / push-pull method (liquid pressure recovery method) |
Power Supply | 100 V (50/60 Hz) |
Compressor | 250 W oilless type |
Mass | 1 L with cylinder: 11.0 kg / without cylinder: 9.3 kg |
Operating Temperature Limit | 0 ~ 40°C |
Ultimate Vacuum | At automatic stop: -0.02 MPa (-150 mmHg) Manual stop: maximum -0.091 MPa (-682 mmHg) |
Corresponding Cylinder | Float detection type: Float sensor type cylinder (1 L, 6 L, 12 L, 24 L, 40 L, 120 L) |
Standard Accessories | ¼"Three charging hoses with ball valve Freon recovery cylinder 1 L (Built-in float sensor) * 1 L cylinder specification only Shoulder strap, hose adapter for R410A 5/16 "female × ¼" male, |
