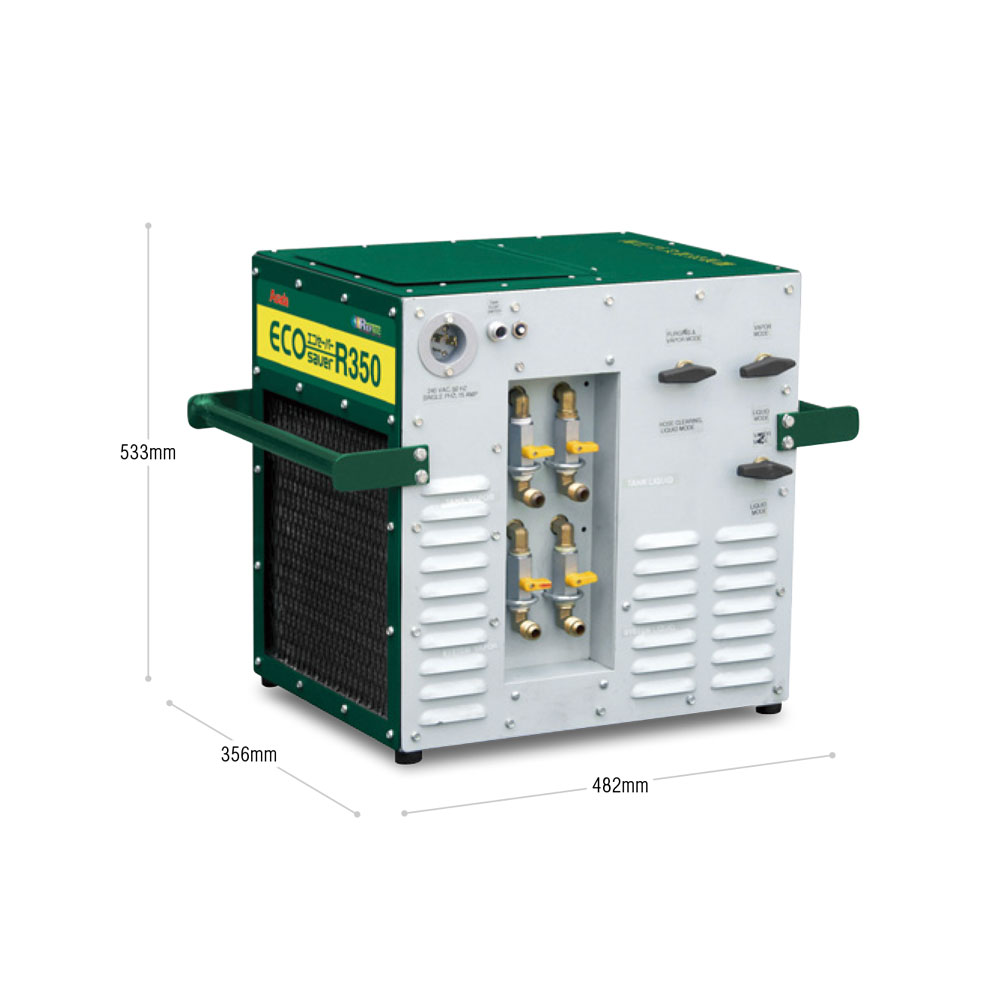

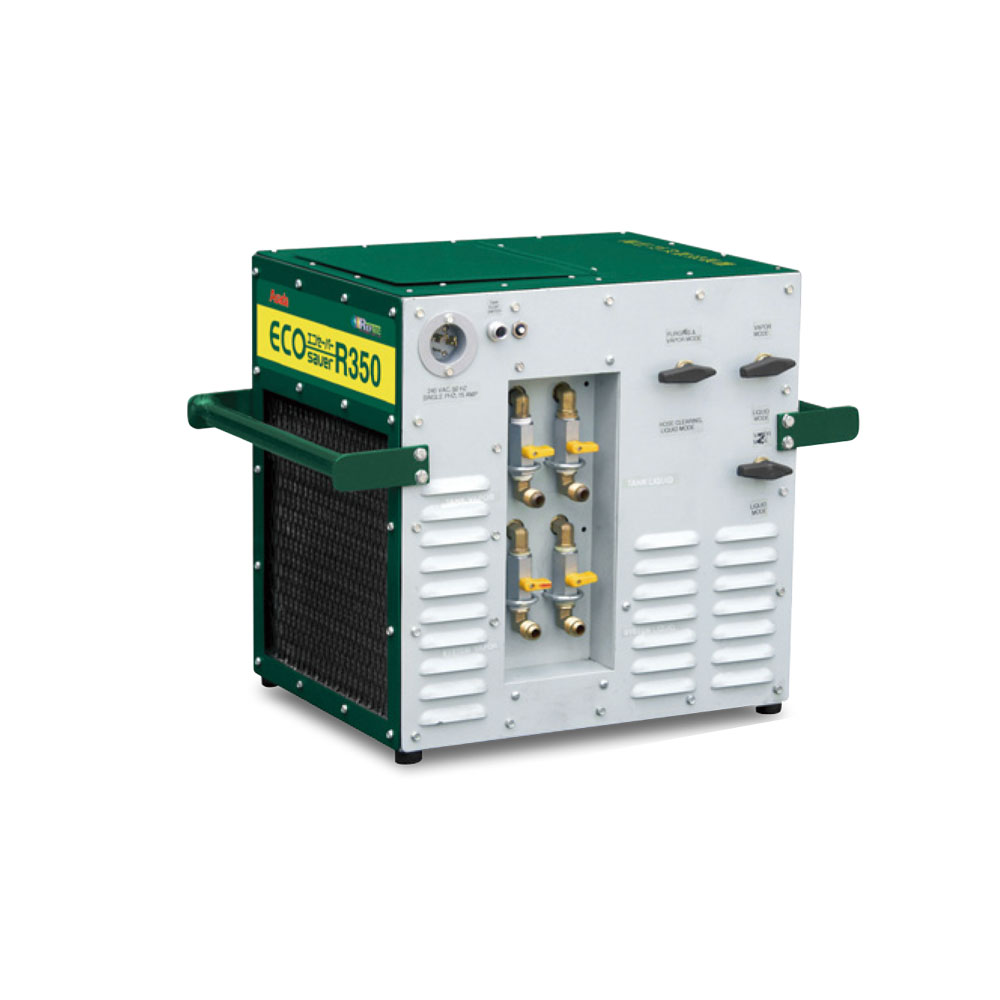

Powerful Large Recovery Machine

  • Strong cooling with large condenser & large fan
  • Easy Operation
  • Easy to transfer filling
  • Preventing a temperature rise when transfer filling
  • Long Time Operation
  • Auto/ Manual Stop
  • No need of vacuuming after transfer filling
  • Evacuation possible
  • Limit scale applicable



Applicable Refrigerant R12, R22, R500, R502, R114, R124, R134a, R403B, R404A, R407C, R407D, R412A, R413A, R417A, R422A, R422D, R423A, R507A, R509A
Recovery Method Compressed vapor recovery / Push- pull
Voltage made to order
Compressor 1500W 2 piston open drive (oil in) compressor
Weight 45.4kg
Operating Temperature 0~40°C
Ultimate Vacuum Auto stop : ? 0.044MPa (?330mmHg) Manual stop : Max ?0.098MPa (?735mmHg)
Applicable Cylinder Float detection : Cylinder with sensor (120L) Mass weighing : Cylinder when using Limit scale (120L)
Standard Accessories Charging hose 1/2" 3m×2, Charging hose 1/2" 6m×2, 1/2" ball valve×2, Safety cable, Filter dryer×2, Adapter for different diameters 1/4" female×1/2" male×4, Manifold filter 1/2"×1
